View demonstration video.

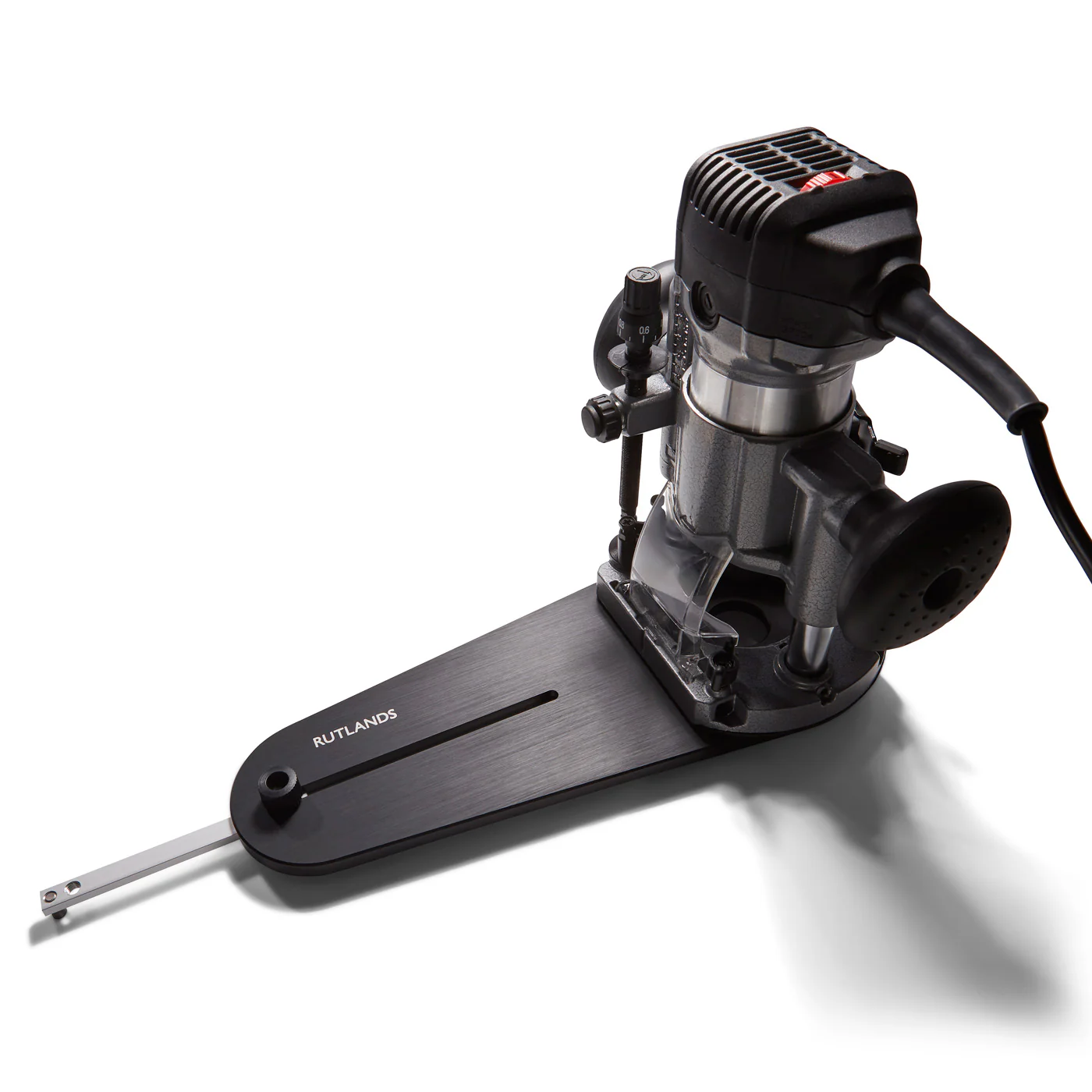

This router circle jig will allow you to rout circles from 20mm to 690mm in diameter with ease and accuracy. The circle compass is CNC machined from solid phenolic to allow for a smooth, no-mar passage over the workpiece. You simply drill a 6mm diameter hole with the supplied drill bit and insert the round lug that is attached to the aluminium sliding arm. You then adjust and lock off the sliding arm to your desired dimension.

The circle compass can be used with all leading brands of router simply by drilling the base to suit. To mount the router, you insert the circular alignment block and locating pin into the circle compass. Position the router's collet over the pin, which will ensure the router is central and then mark the position to drill your holes to attach your router. The circle compass comes ready to use with phenolic base, aluminium sliding arm, 6mm drill bit and depth stop and router alignment block. Excellent for smooth, controlled routing of circles. ©
